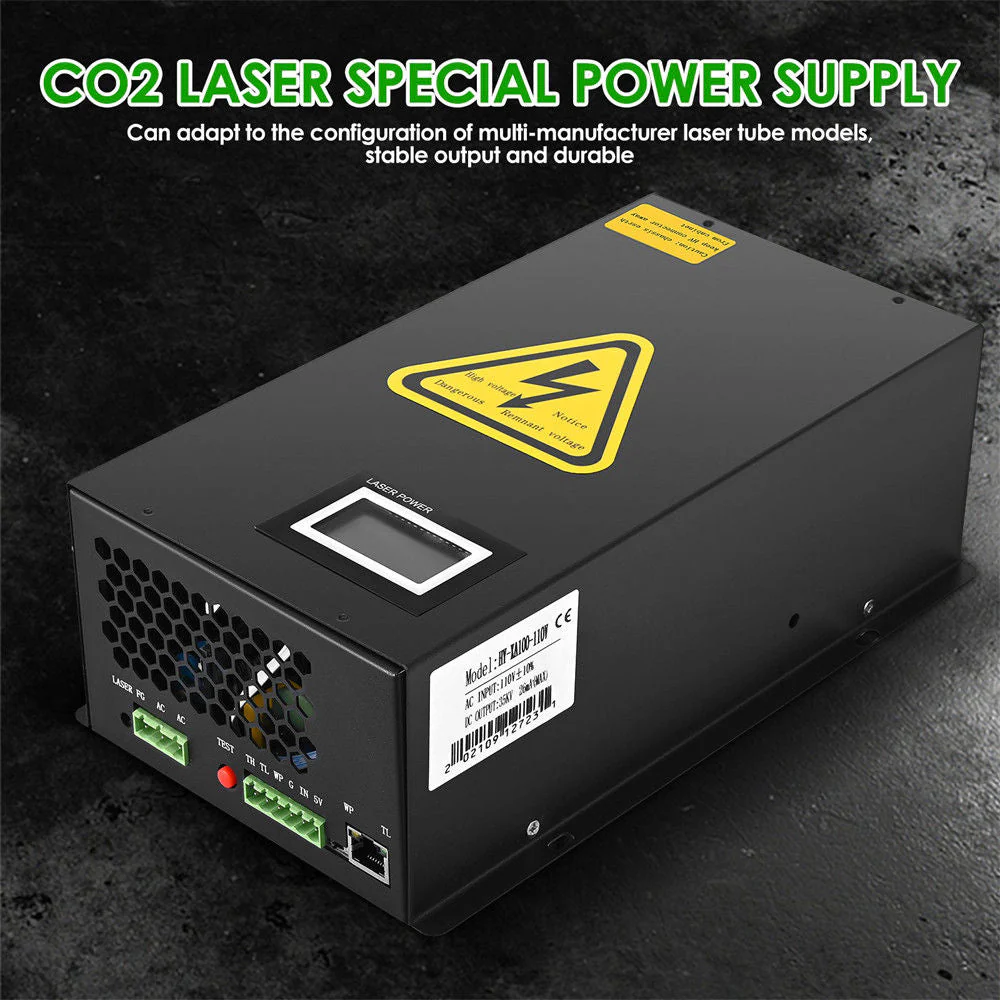

Monport 100W Laser Power Supply with Real-time Data for CO2 Laser Engraver
Package Dimensions: 13.6” x 9.4” x 5.7” ( 34.5 x 24 x 14.5 cm )
Package Weight: 7 lbs ( 3.2 kg )
Input Voltage: 220V AC
Input AC Frequency: 47-440 Hz
Max. Output Voltage: 28 kV DC
Max. Output Current: 30 mA DC
Efficiency: ≥ 90%
Mean Time Between Failure ( MTBF ): ≥ 30000 hr.
Response Time: ≤ 1 millisecond
High-Level Voltage Range: ≥ 3.0V
Low-Level Voltage Range: ≤ 0.7V
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Package Dimensions: 13.6” x 9.4” x 5.7” ( 34.5 x 24 x 14.5 cm )
Package Weight: 7 lbs ( 3.2 kg )
Input Voltage: 220V AC
Input AC Frequency: 47-440 Hz
Max. Output Voltage: 28 kV DC
Max. Output Current: 30 mA DC
Efficiency: ≥ 90%
Mean Time Between Failure ( MTBF ): ≥ 30000 hr.
Response Time: ≤ 1 millisecond
High-Level Voltage Range: ≥ 3.0V
Low-Level Voltage Range: ≤ 0.7V
